EV charging
Hypervolt, Zappi, Ohme and Andersen chargers — installed, load-balanced and certified to BS 7671. DNO notified, app set up before we leave.
TrustMark
Part P
BS 7671
Home & workplace charging
We help you pick the charger that suits your car and supply, then install it neatly with tidy cable runs and full protection.
What’s included
Wall or post-mounted, positioned for easy daily plug-in.

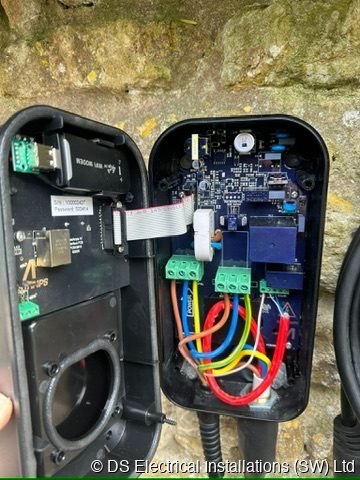

Type A RCBO, correct earthing and isolation as standard.

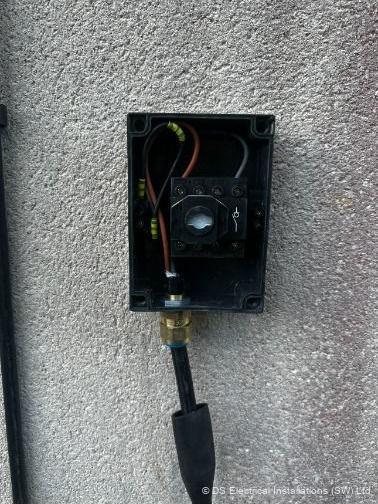

SWA and containment routed neatly — no eyesores.
BS 7671 certificate, DNO and Building Control handled.
Neat where it matters

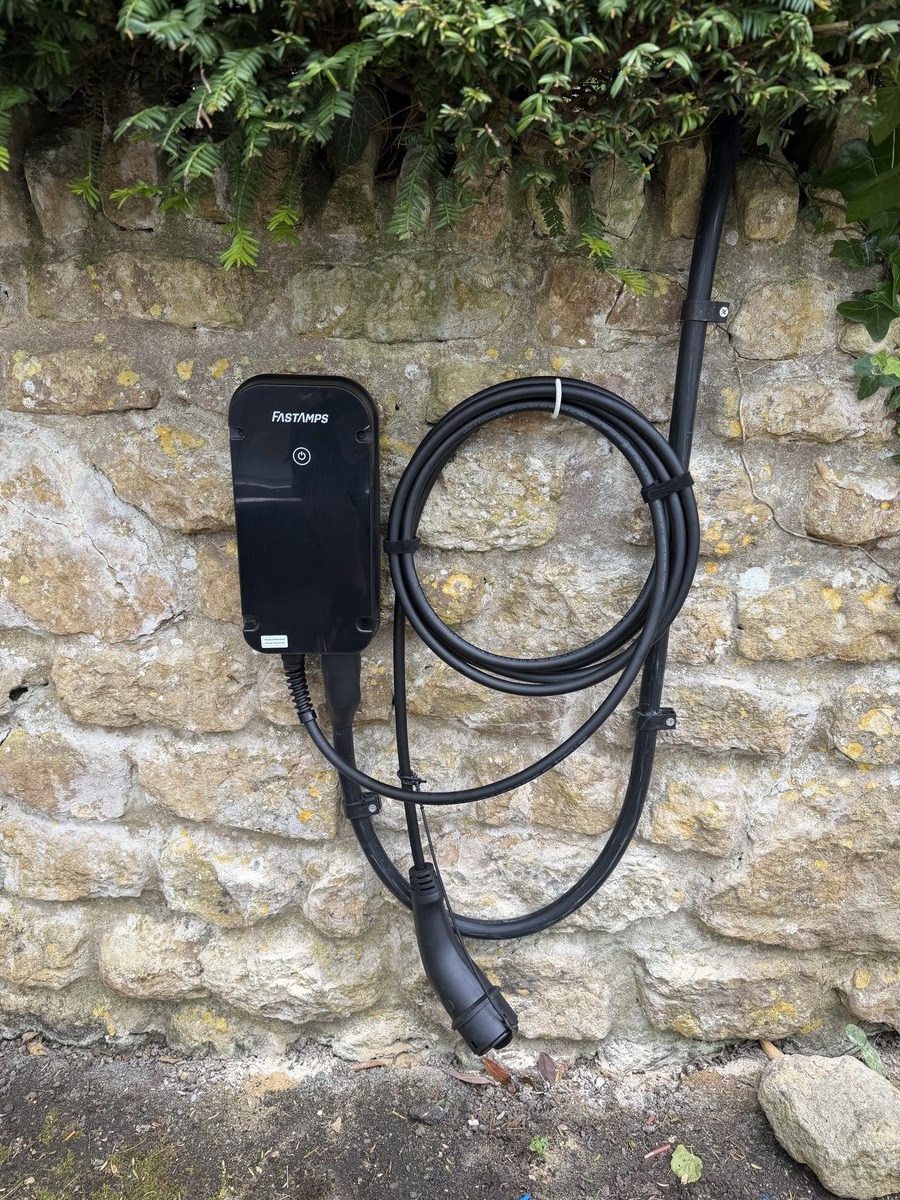

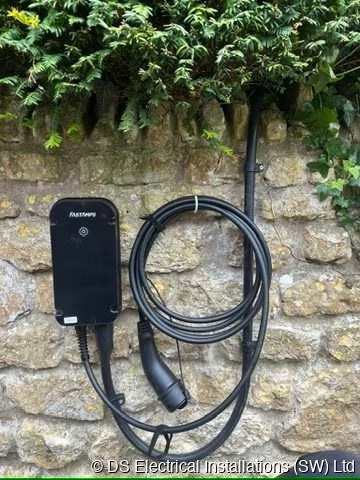

We route cables discreetly and mount the unit where it works for you — a clean finish on brick, render or stone.
See EV installs →Pricing
Every installation is priced individually. The price depends on the charger you choose, the cable run and the consumer unit, and the written quote sets out exactly what is included, charger and all. DNO notification, app set-up and handover are part of every install.
FAQ
It depends on your car, your driveway and your supply. We’ll recommend from Hypervolt, Zappi, Ohme and Andersen — all fitted on Type A RCBO protection.
Usually not — we load-balance the charger to your existing supply. If anything’s needed we’ll tell you up front.
It depends on the charger you choose, the length of the cable run and whether the consumer unit needs any work. We give you a fixed written quote that sets out exactly what is included, charger and all: the dedicated circuit, cabling, fitting and NAPIT certification.
It depends on your needs. Hypervolt 3 is our most popular for reliability. Easee is most compact. Ohme offers the best smart charging for Octopus Go users. Zappi is strong for myenergi ecosystem users.
Not always, but often yes. EV chargers require a Type A RCD with 6mA DC detection, which older consumer units don't have. We'll survey your board during the site visit.
A standard installation takes 3–4 hours. If the cable run is longer or a consumer unit upgrade is needed, it may take a full day.
Brands we install
We supply and install the UK’s leading EV charger brands, from sleek domestic units to heavy-duty commercial pedestals. All OCPP-ready where applicable, smart-enabled, and built for the British climate.
British-designed with a signature illuminated tube and customisable LED colours. 7.4kW single-phase Type 2, tethered or socketed. Smart Schedule integrates with Octopus, OVO and other time-of-use tariffs. OCPP 1.6J, IP65, Wi-Fi and 4G backup, load balancing via CT clamp, over-the-air firmware updates. 3-year warranty.
Heavy-duty commercial and workplace AC chargers built for high-utilisation sites. 7.4kW single-phase or 22kW three-phase, single or twin-socket pedestal and wall-mount options. OCPP 1.6J-compliant for integration with any back-office billing or fleet platform. RFID driver authentication, dynamic load management, IP54 rated, MID-certified metering for accurate chargeback. Ideal for fleet depots, car parks and destination charging.
7kW single-phase or 22kW three-phase capable. Built-in load balancing supports up to 3 chargers on one supply without upgrades. Compact 69mm-thin design, IP55 rated. Dynamic load management prevents main fuse overload. Wi-Fi and 4G connectivity. 3-year warranty.
Dynamic smart charging with direct Octopus Agile, Go and Intelligent Go tariff integration. Automatically charges when electricity is cheapest, saving up to 70% on charging costs. 7.4kW Type 2 output. CT clamp compatible. 3-year warranty.
British-made charger with three charging modes — Fast draws full grid power, Eco throttles based on household demand, Eco+ waits for surplus generation. 7kW or 22kW three-phase models. Built-in Type A RCD with 6mA DC protection. IP65 rated. Part of the myenergi ecosystem — pairs with Eddi and Harvi. 3-year warranty.
Premium British-designed charger with real wood or painted metal fascia — 14 colour options to match your property. 7kW Type 2 output. IP54 rated for indoor or outdoor installation. PEN fault detection built in, eliminating the need for an earth rod on PME supplies. Smart scheduling via app. 3-year warranty.
7kW home charger or commercial Twin models for workplace and fleet charging. PAYG and subscription billing for commercial sites. Energy usage reporting and driver management via the Pod Point portal. IP65 rated. OCPP compatible for commercial deployments. 3-year warranty.
Included as standard
Every installation includes everything you need for safe, certified home charging from day one.
New dedicated radial from your consumer unit using 6mm² T&E (internal) or 10mm² SWA (external runs over 15m). Dedicated 32A Type A RCBO protection sized to BS 7671:2018+A4:2026 requirements.
Full earth fault loop impedance and prospective fault current testing. Type A RCD with 6mA DC fault protection as required by BS 7671 Regulation 722.531.2. PME earthing assessment per ENA Engineering Recommendation G12 — earth rod installed where required on TN-C-S supplies.
Full Electrical Installation Certificate (EIC) issued and registered with NAPIT for Building Regulations Part P compliance. Includes schedule of inspections and test results to BS 7671:2018+A4:2026.
Charger connected to your Wi-Fi network, manufacturer app installed and configured, smart charging schedules set to match your energy tariff. CT clamp fitted where required for dynamic load management.
Neat, clipped SWA cable runs or galvanised trunking with proper glands, saddles and weatherproof terminations. All penetrations sealed and fire-stopped. No exposed cables, no unsightly runs.
We submit DNO notification (required for all installations above 3.68kW per BS 7671), and provide all compliance documentation including photographs and installation records.
Charging speeds
Maximum 7.4kW charging speed. Adds approximately 25–30 miles of range per hour. A typical EV (60kWh battery) charges from 20% to 80% in around 5 hours. More than sufficient for overnight home charging.
Up to 22kW charging speed. Adds approximately 75–90 miles of range per hour. Ideal for workplaces, fleet depots, hotels and destinations where faster turnaround is needed. Requires a three-phase supply — we can arrange upgrades through your DNO if required.
Your charging speed is limited by either the charger output or the vehicle’s onboard charger — whichever is lower. Most EVs accept 7kW AC; some (like Tesla Model 3 and BMW i4) accept 11kW; fewer accept the full 22kW. We advise on the right charger for your specific vehicle.
Both domestic and commercial installations require a site survey to confirm cable routes, supply capacity, main fuse rating and earthing arrangements. We provide surveys across our coverage area.
Technical requirements
EV chargers draw sustained high current — typically 32A continuous for hours. A properly designed dedicated circuit is non-negotiable for safety, performance, and compliance with BS 7671:2018+A4:2026 Section 722.
6mm² twin-and-earth for internal runs up to 22m, or 10mm² SWA cable for longer external runs and underground routes. Cable sizing calculated per BS 7671 Appendix 4, accounting for volt drop (max 5%), grouping factors, thermal insulation and ambient temperature. We never undersize cables.
BS 7671 Regulation 722.531.2 requires Type A RCD protection with additional 6mA DC residual current detection for EV charging circuits. The chargers we install (Hypervolt 3, Ohme, Zappi, Easee, Andersen) all have integral 6mA DC fault detection, so a Type A RCBO at the consumer unit is all that’s required. No additional DC module or upgraded device needed.
All EV charger installations above 3.68kW require notification to your Distribution Network Operator per the Electricity Safety, Quality and Continuity Regulations 2002. Installations above 7kW (or multiple chargers) may require a supply capacity assessment — and in some cases a main fuse upgrade from 60A to 100A. We handle all DNO correspondence and applications.
We measure your existing demand and verify your main fuse rating (typically 60A, 80A or 100A). A 7kW charger draws 32A — if your existing peak demand is 40A on a 60A supply, there is a problem. We model your load profile and recommend solutions: supply upgrade, smart load management via CT clamp, or scheduled off-peak charging to stay within your capacity.
Most UK homes have PME (TN-C-S) earthing. BS 7671 Regulation 722.411.4.1 requires additional protective measures for EV charging on PME supplies due to the risk of a PEN conductor fault. Options include chargers with integral PEN fault detection (Andersen, some Easee units), installation of an earth rod to create a TT arrangement at the charger, or a separate TT earth electrode. We assess your earthing and implement the correct solution.
For properties with multiple chargers (or limited supply capacity), we install CT clamp-based dynamic load management. This monitors real-time household demand and throttles the charger output to prevent main fuse overload. Easee supports load balancing across up to 3 chargers natively. For larger installations, we configure OCPP-based load management systems.
Commercial solutions
From a single staff charger to a 40-bay car park, we design and install commercial EV charging infrastructure that scales with your business.
The shift to electric vehicles is accelerating. Employees expect workplace charging as standard. Offering it makes your business more attractive to talent and demonstrates genuine commitment to sustainability. We design workplace charging systems that work commercially:
Commercial installations require more than hardware. We configure charging management platforms that give you full control:
Fleet depots, workplace car parks, hotels and destination charging sites running multiple OCPP-connected chargers don’t just need power — they need reliable network infrastructure for cloud reporting, dynamic load management and driver authentication. We do both halves in-house: network infrastructure →
Multi-bay fleet rollout? Full scope, DNO consultation, dynamic load management and 6-bay-plus pricing on the dedicated page: Commercial EV fleet →
Areas we cover
What customers say
“I had a brilliant experience using Dan for a full revamp of the electrics ready for the new kitchen. It was a large project and he explained things clearly and gave me options.”
“Dan and his team did a fantastic job upgrading everything in my flat. Professional, tidy, and excellent quality work throughout.”
“Dan arrived on time, completed the job in a professional and speedy way. There was no mess to clean up. I would highly recommend.”
Get a quote
Tell us your car and where you park — we’ll quote a neat, certified install.
DS Electrical Installations (SW) Ltd will call you back to talk through the job.
